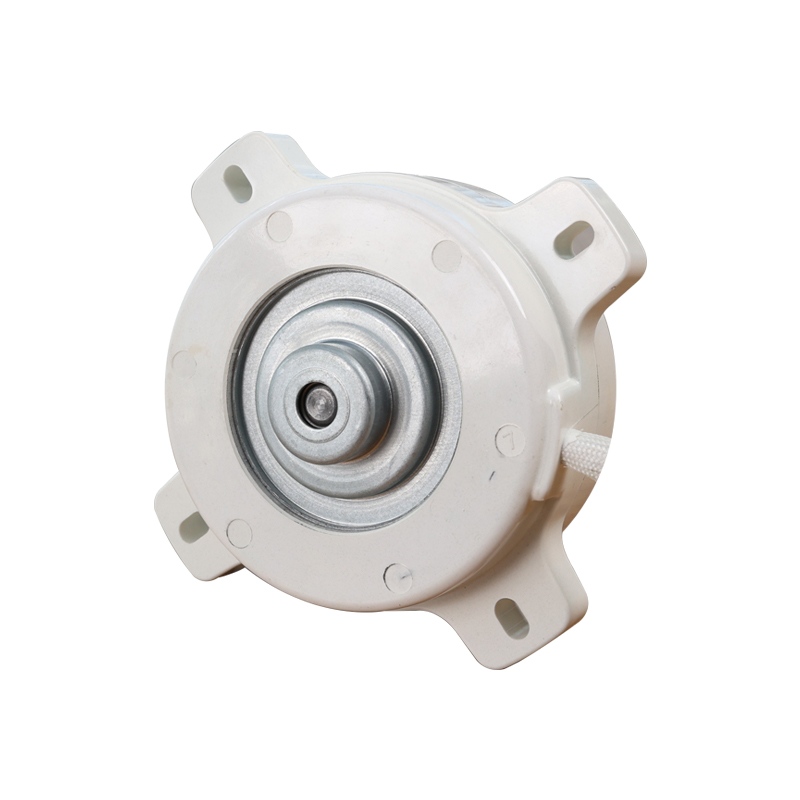

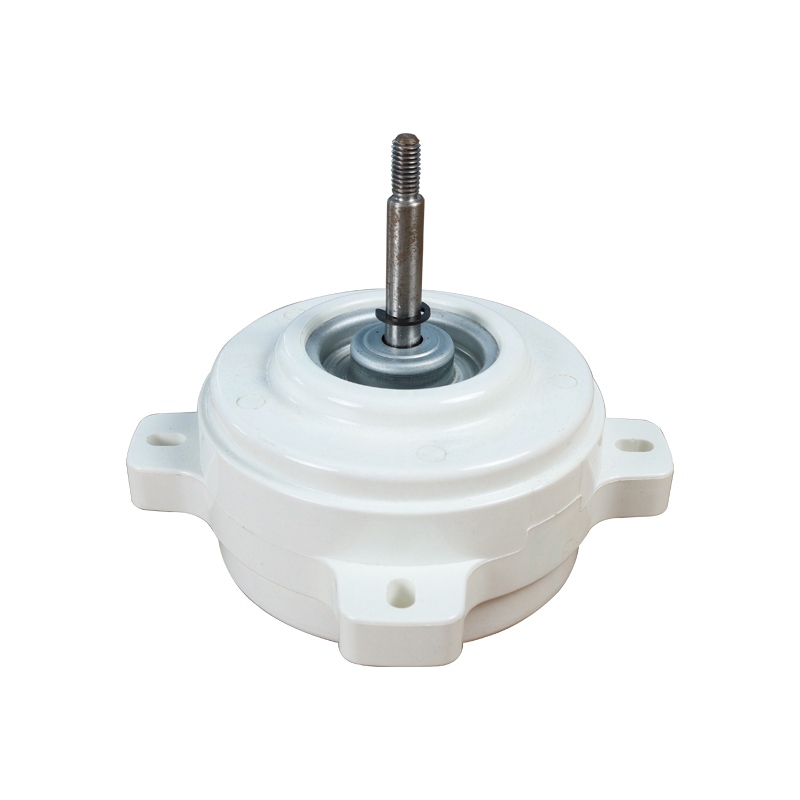

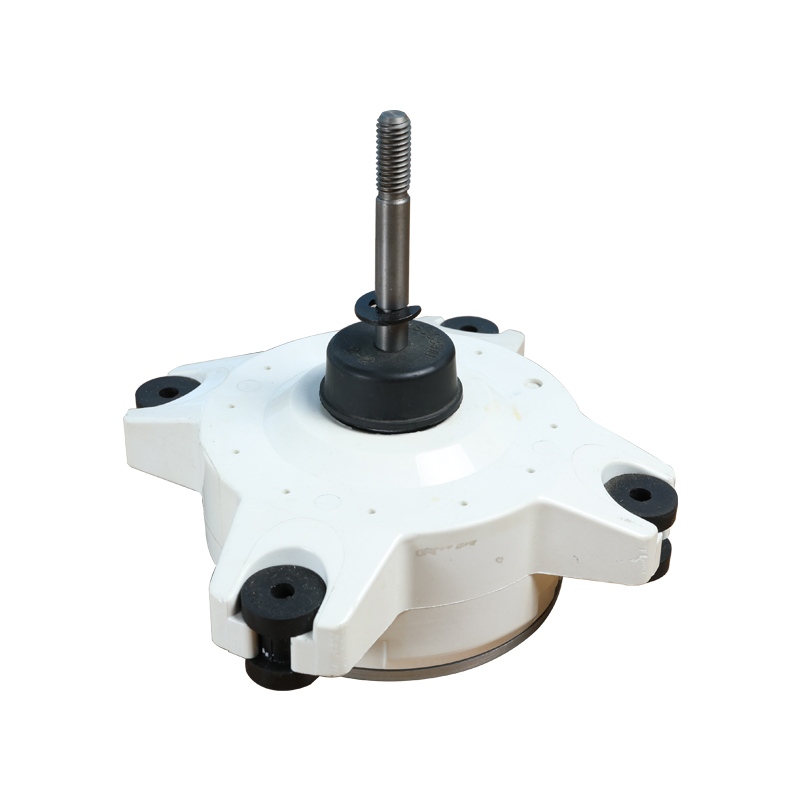

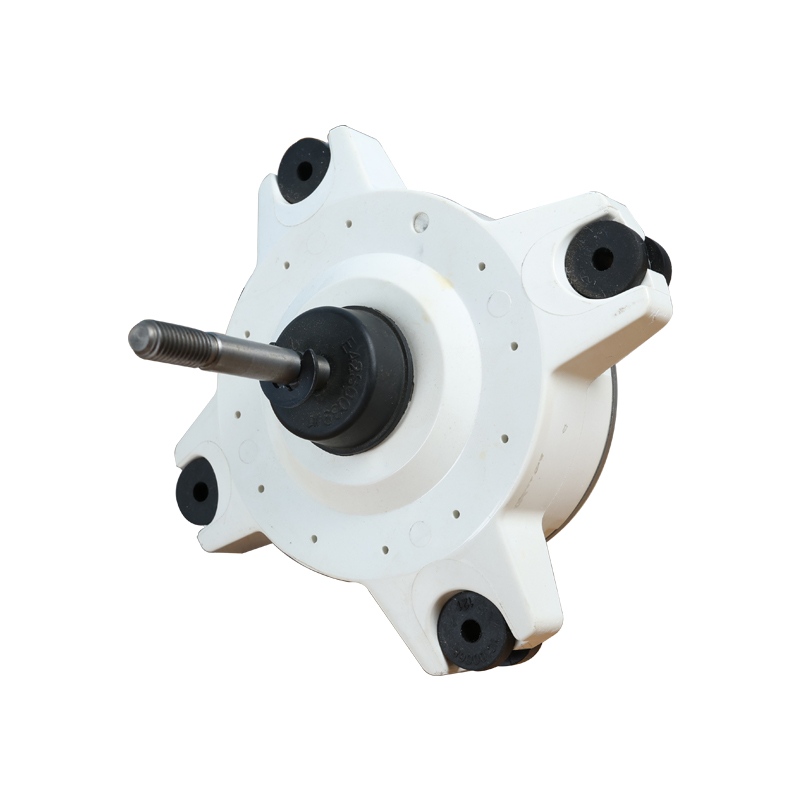

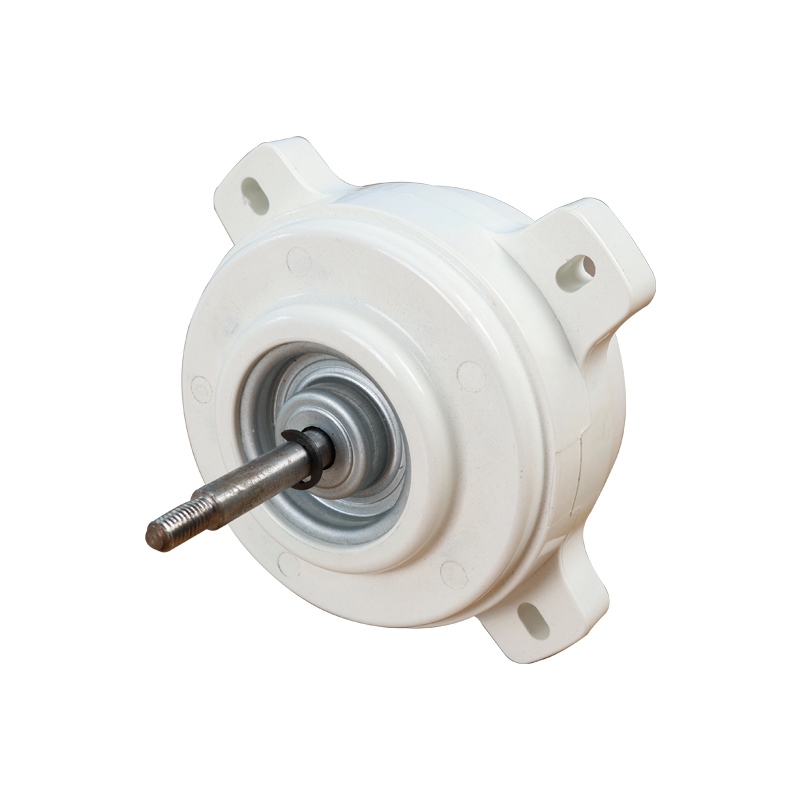

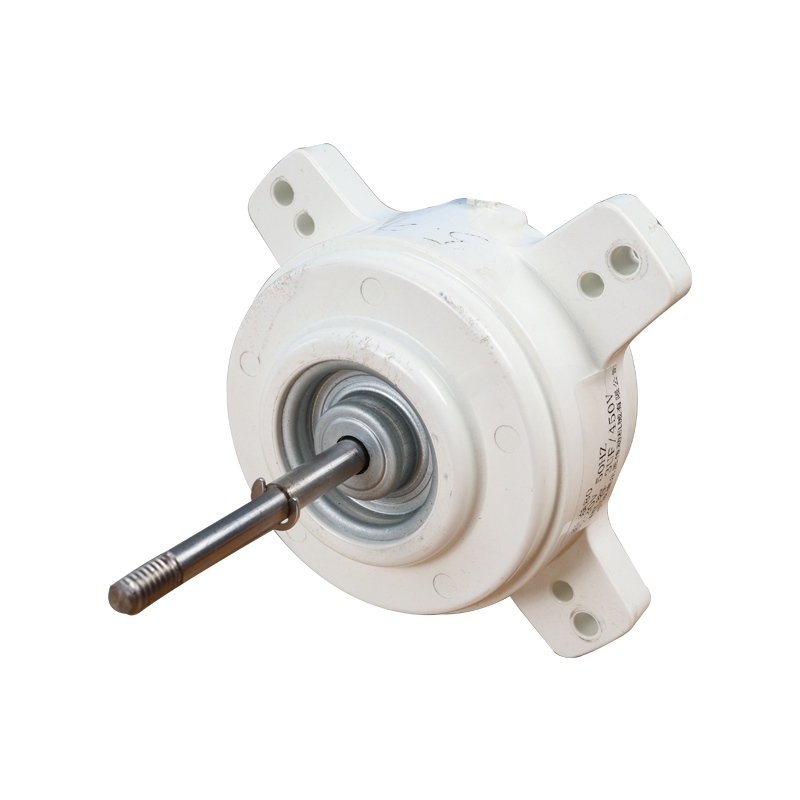

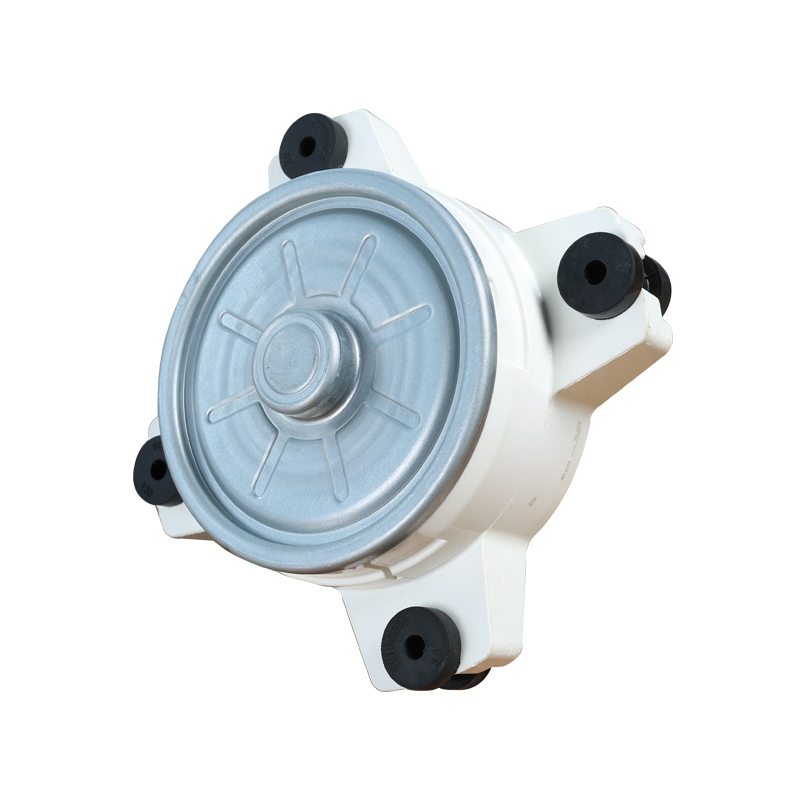

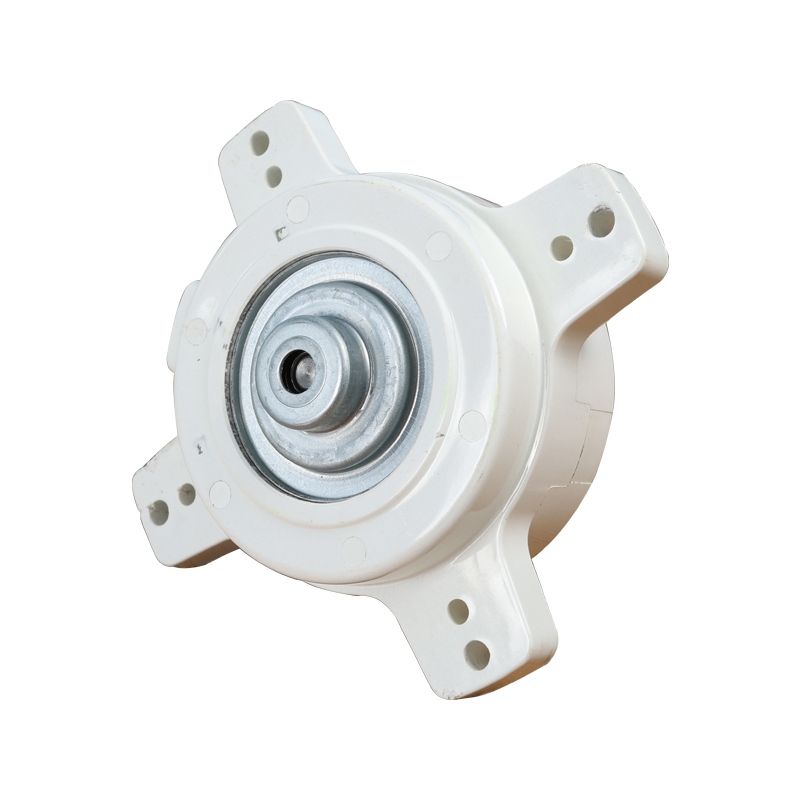

Plastic-encapsulated motors, also known as fully plastic-cased motors or insulated-cased motors, are revolutionary motor products that use high-polymer engineering plastics to integrally encapsulate the stator core and windings. They represent a significant advancement in the quietness, safety, lightweight design, and corrosion resistance of small motors. Through precision injection molding, the motor core and casing are integrated into one unit, effectively isolating electromagnetic noise and preventing foreign object intrusion, while also achieving excellent electrical insulation performance.
Key Features: The integrated plastic casing effectively absorbs and suppresses electromagnetic vibration and noise, while its own operating vibration is low, providing a superior quiet experience for end products.
Key Features: The plastic casing itself is a high-strength insulator, providing double insulation protection and effectively preventing the risk of leakage, especially suitable for electrical products that come into direct contact with humans and machines.
High Insulation Rating: Generally reaches Class B or F insulation system.
Protective Performance: The casing protection rating can reach IP44 or higher, dustproof, moisture-proof, and splash-proof.
Key Features: The engineering plastic casing is significantly lighter than traditional metal casings and is inherently rust-proof and corrosion-resistant, resisting the erosion of various chemicals and humid environments.
Standard Technical Parameter Table
Parameter Item | Specification Description
Motor Type | Permanent Magnet Synchronous Motor (BLDC), DC Brushed Motor, AC Induction Motor (Single-Phase Capacitor Operation)
Rated Power | 1W to 750W (Mainstream coverage, customizable for larger ranges)
Rated Voltage | DC: 5V, 12V, 24V, 48V / AC: 110V, 220V (50/60Hz)
Output Form | Shaft Output (Optical Shaft/Gear Shaft), Worm Gear Output, Flange Output, etc.
Insulation Class | Class B (130℃) or Class F (155℃)
Protection Class | IP42 (Standard), IP44, IP54 (Enhanced Protection Optional)
Duty Cycle | S1 (Continuous) or Intermittent Duty Cycle
Standard Certifications | CCC, UL, CE, VDE, RoHS (Meets appliance safety and environmental requirements)
