Product Description

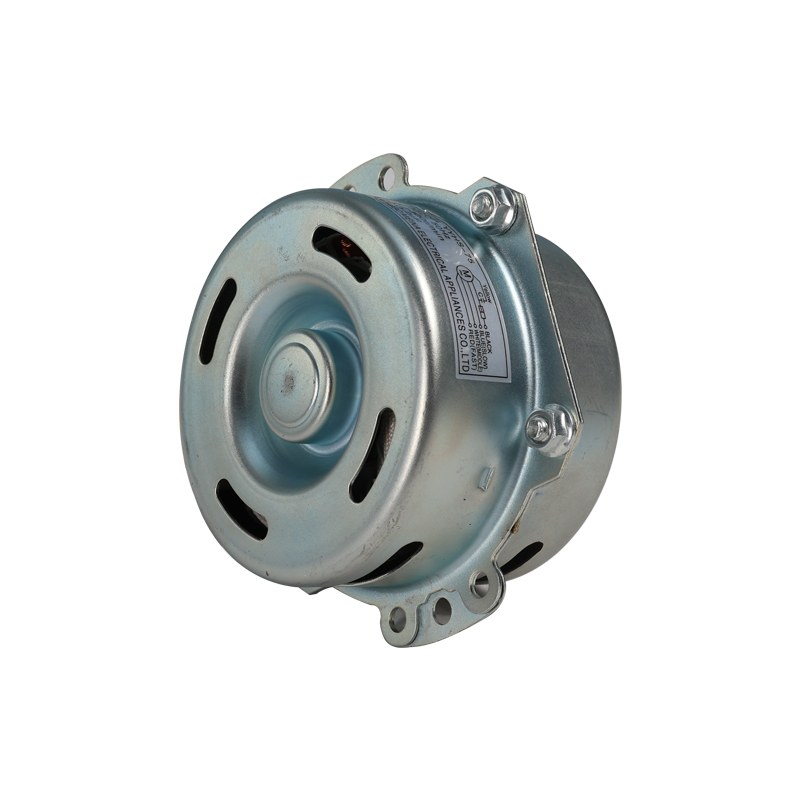

This series of motors is a core power unit specifically designed for cross-flow fans. As the "heart" of the fan's efficient and stable operation, we focus on providing motor solutions that perfectly match the unique duct structure and aerodynamic requirements.
Optimized for Cross-Flow: Electromagnetic and structural designs are customized to address the characteristics of cross-flow fans—long impellers, low speeds, and high torque—achieving optimal load matching and avoiding energy waste caused by over-powered motors.
High Efficiency: Utilizing high-quality silicon steel sheets, low-loss windings, and optimized design, the motor itself boasts high efficiency, significantly reducing the overall energy consumption of the fan and contributing to improved energy efficiency in end products.
Standard Technical Parameters
Parameter Category | Specifications
Motor Type | Capacitor-Run Asynchronous Motor (Single Phase)
Rated Power | 15W to 100W (Standard Range, Customizable)
Rated Voltage | AC: 110V, 220V
Number of Poles and Speed: 2-pole, 4-pole, 6-pole, etc., to meet different airflow and pressure requirements
Insulation Class | F-class (155℃) standard, providing a higher safety margin
Protection Class | Standard IP20, IP44, IP54, etc. optional
Duty Cycle | S1 (Continuous Duty), suitable for long-term operation
Speed Control Method | Tap speed control
Certification Standards | Complies with CCC, CE, UL, and other domestic and international safety and electromagnetic compatibility standards
