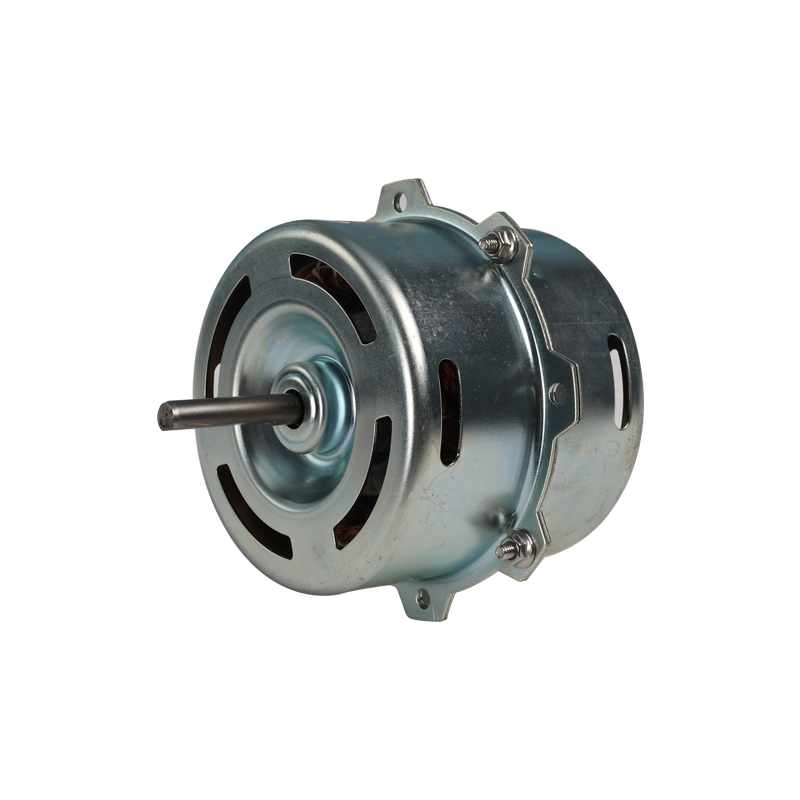

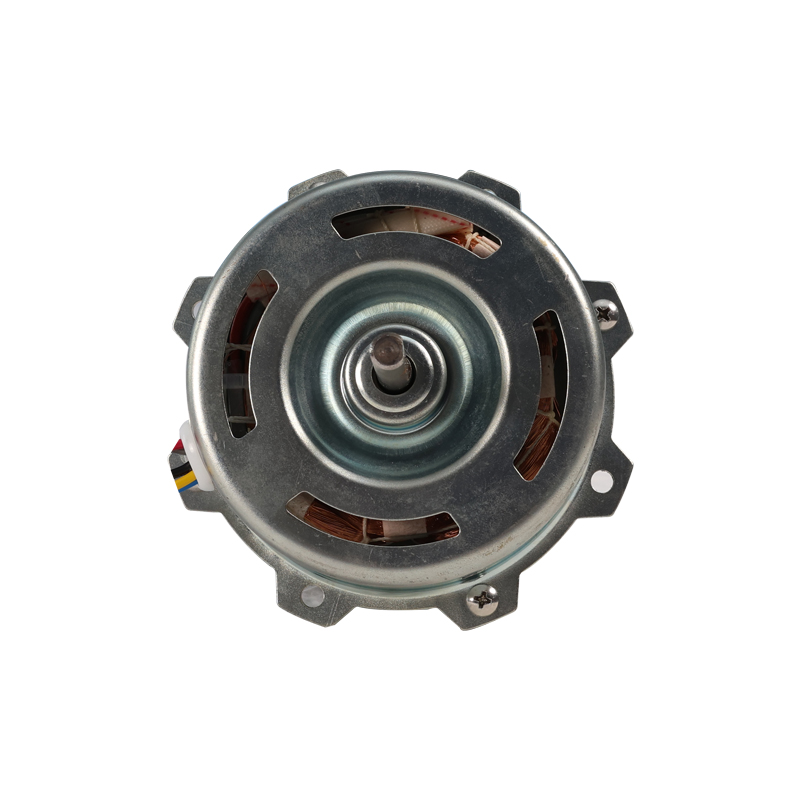

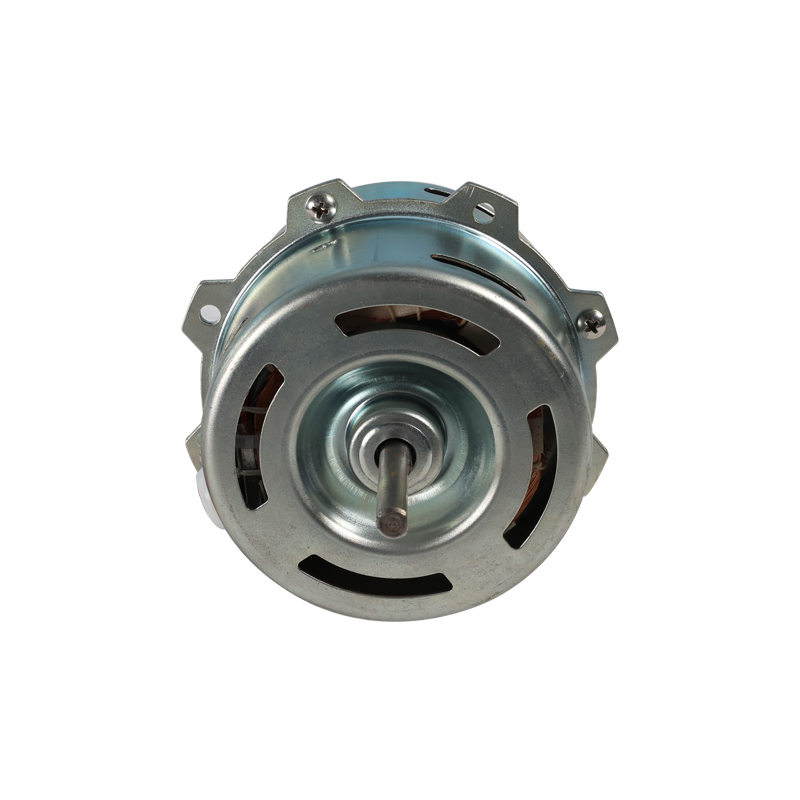

Product Description
This series of motors, characterized by high efficiency, stability, low noise, and long lifespan, is an ideal power source for commercial, industrial, and residential air curtain machines.
It offers a variety of power options (from tens of watts to thousands of watts), voltage options (e.g., single-phase 220V, three-phase 380V), speed options, and shaft extension options to suit various air curtain machine models.
Modular design with standard interfaces facilitates easy installation, maintenance, and replacement.
Built-in overheat protection (on some models) automatically cuts off power when the motor temperature rises abnormally, preventing burnout.
Complies with relevant domestic and international electrical safety standards (e.g., CCC, CE, UL, etc.).
Main Technical Parameters:
Motor Type: Capacitor-run asynchronous motor (single-phase), three-phase asynchronous motor
Rated Power: 50W - 300W (covering mainstream air curtain machine requirements)
Rated Voltage/Frequency: Single-phase 220V/50Hz (60Hz), etc.
Number of Poles and Speed: 2-pole (approx. 2800 rpm), 4-pole (approx. 1400 rpm), 6-pole (approx. 900 rpm), etc.
Insulation Class: Class B, Class F (low temperature rise, longer lifespan)
Protection Class: IP44 (splash-proof), IP54 (dustproof and splash-proof), etc.
Duty Cycle: S1 (continuous duty)
